ONERO

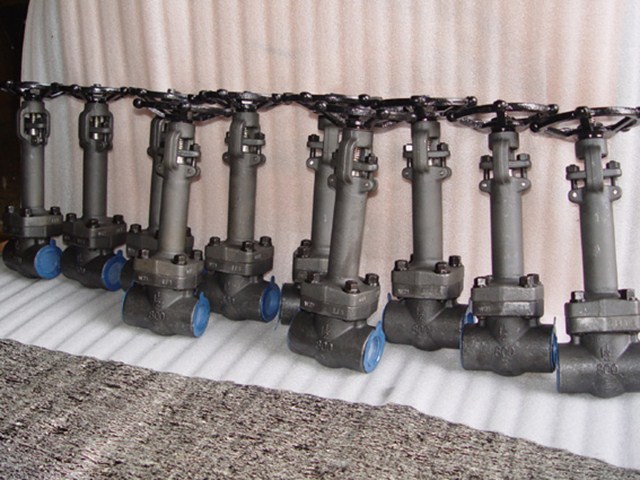

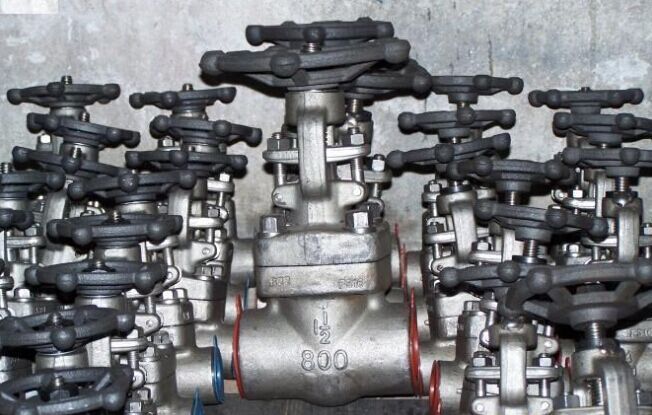

Forged Steel Gate Valve

Group Gate valves
Min. Order 1 piece
Terms of Payment all
Update Time 2019-06-05
Specification
Design standard:
Design


API 602, ASME B16.34, BS 5352, DIN3352
Test
API598
Products range:
Size
1/2" ~ 2" (DN50~DN1200)
Rating
150LB ~ 2500LB
Body Materials
Carbon steel, Stainless steel
Feature

Solid wedge gate

Full port or reduced port design

Bolted bonnet, welded bonnet, or pressure sealed bonnet

Flanged, butt-welded, socket welded, or threaded ends






Forged gate valves can be full port or reduced port as per requirements of customers. Valves are available in a complete range of body/bonnet materials and trims
