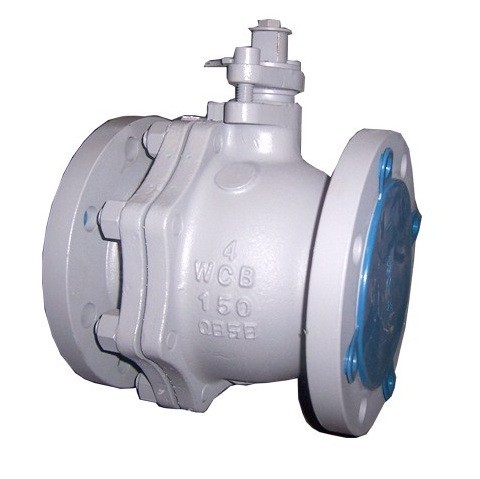

Casting Floating Ball Valve Supplier
- Share
- Issue Time
- Aug 27,2019
Summary
The ball of the floating ball valve is floating. Under the action of the medium pressure, the ball can generate a certain displacement and press on the sealing surface of the outlet section to ensure the sealing at the outlet end.
product description
The ball of the floating ball valve is floating. Under the action of the medium pressure, the ball can generate a certain displacement and press on the sealing surface of the outlet section to ensure the sealing at the outlet end. The floating ball valve has a simple structure, compact design and good sealing performance. The sealing surface and the ball valve are often closed, and are not easily eroded by the medium. It is suitable for general industrial media such as water, solvent, acid and natural gas, and is also suitable for relatively harsh working conditions. Medium such as oxygen, hydrogen peroxide, methane and ethylene.
Feature
- Two pieces body
- Full & Reduced bore
- Anti-static device
- Blow-out proof stem
- Fire safe design
- Operation: Lever, Gear, Pneumatic etc.operator
Specification
Design standard: | |
Design | API6D, ASME B16.34 |
Test | API598 |
Products range: | |
Size | 1/2" ~ 10" (DN15~DN250) |
Rating | 150LB ~ 600LB |
Body Materials | Carbon steel, Stainless steel |
Trim | A105+ENP, 13Cr, F304, F316 |
Application
Petrochemical,Chemical,Refinery,Power plant ,etc
Feature
- Full or Reduce port
- Anti-static
- Fire safe seat sealing
- Low emission control
- Optional by locking device
- Operation: Lever, Gear, Pneumatic etc.operator
Specification
Design standard: | |
Design | API6D, Manufacturer's standard |
Test | API598 |
Products range: | |
Size | 1/2" ~ 16" (DN15~DN400) T-type, L-Type |
Rating | 150LB ~ 300LB |
Body Materials | Carbon steel, Stainless steel |
Trim | A105+ENP, 13Cr, F304, F316 |
Application
Petrochemical,Chemical,Refinery,ower plant ,etc
